Early Anita Desktop Calculators
ANITA Mk 10

Mk 10

ANITA Mk 10

12-digit display.

Similar to the earlier models in having the full keyboard and using cold-cathode tube technology, but with decimal and Sterling currency (£sd) capability.

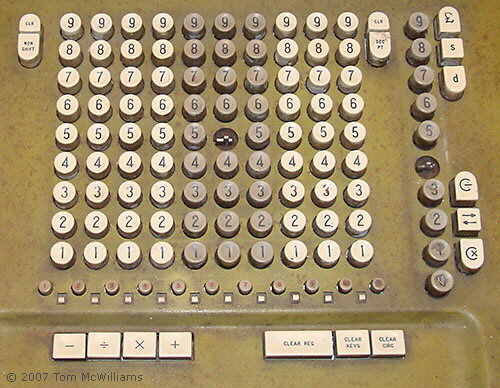

The Mk 10 is virtualy identical to the Mk 9 except that it includes three extra keys on top right hand side for direct pounds/shillings/pence (£sd) conversion, and modified electronics to perform this extra function

This model is still a decimal machine at heart. It does not have full Sterling capability - The operator has to choose whether the input will be in £ (pounds) s (shillings) or d (pence). Values are then input in decimals of that unit. The result can be displayed in full £sd sterling or in the decimal equivalent.

Introduced 1965[1].

Mk 10

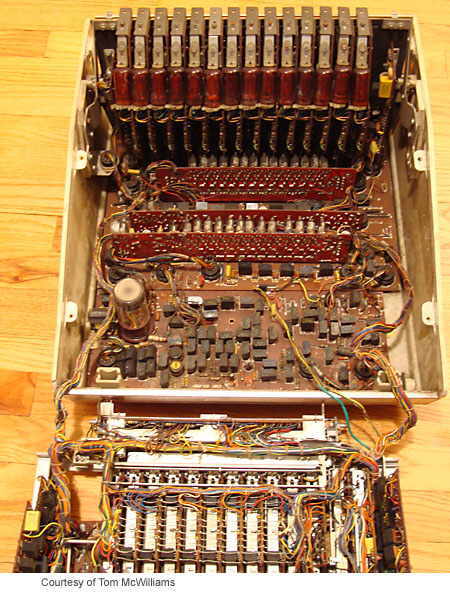

Inside

Here the keyboard has been hinged forwards to reveal the electronics inside the Mk 10.

The design is similar to that of the ANITA Mk 8. There are two horizontal boards at the bottom of the casing. The front board carries the Dekatron counter tube, on the left, and the rear board holds three daughter boards, all using cold-cathode switching tubes.
Along the top of the photograph is the line of numerical display tubes, each clamped to the edge of a board carrying driver and counter electronics.

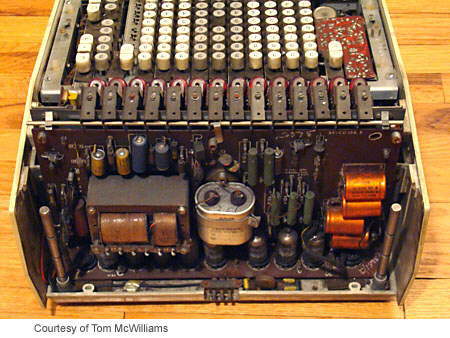

Inside rear

At the rear is the power supply cicuitry and several vacuum tubes (electronic valves).

Anita Mk 10 advertisement

Advertisement from January 1966.

Anita Mk 10 advertisement

Advertisement showing the £ s d keys, at top right.

Anita Mk 10 advertisement

"ANITA Mk. 10 Electronic Desk Computer"

"Designed to meet the special requirements of the British market, ANITA Mk. 10 will calculate and give answers direct in £.s.d. or in whole numbers and decimals with instant conversion to sterling. Price £480 [GBP, about US$1300]. Rental terms available."



Advertised as "5 years ahead of it time" because the conversion from Sterling £sd to decimal currency in Britain was then 5 years away (actually on 15th. February 1971).
This is the only known electronic calculator with a Sterling £sd capability.
See the Sterling Currency Section of the Vintage Calculators site for further details of mechanical Sterling calculators.



References:

  1. "BEE [Business Efficiency Exhibition]", Office Methods and Machines, October 1965, p779.
